CANTEK

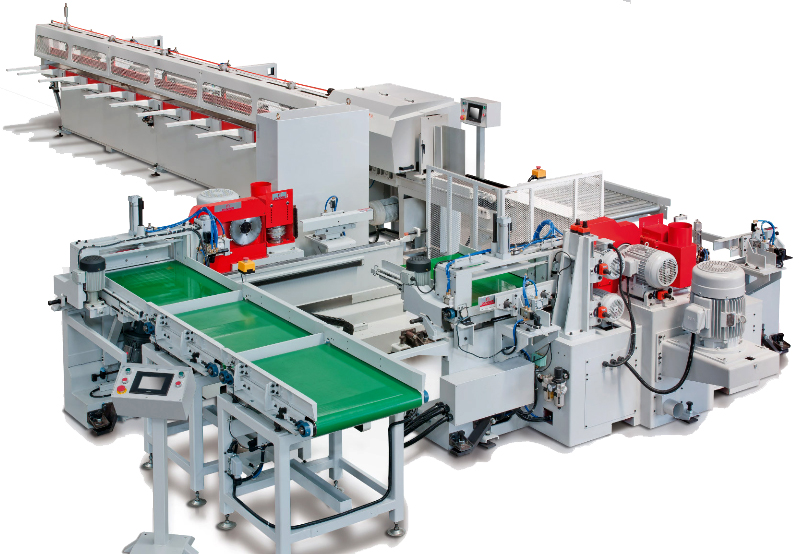

FL-08 Auto Finger Joint Line

Machine Information

FEATURES

FL-08 Auto Finger Joint Line includes the following:

F-129-T2 Auto Infeed Table

Length  900mm (35.4”)
Width 600mm (23.6”)
Infeed Table½ HP (3Ph) x 2

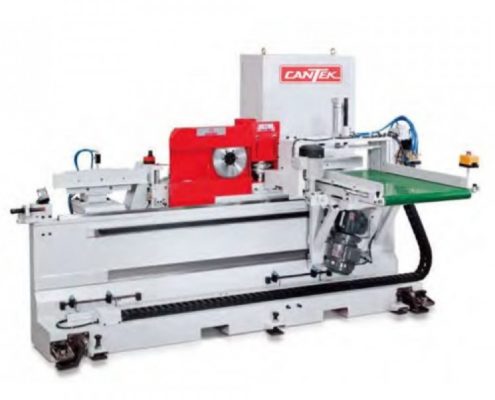

F-C07 Auto Finger Shaper – Left

Table Size 600mm (23.6”)
Length 150~900mm (5.9” ~ 35.4”)
Width 20~60mm (0.78” ~ 2.36”)
Thickness 20~160mm (0.78” ~ 6.3”)

Specifications:

  • With 20HP (3Ph) for Main Spindle
  • With 5HP (3Ph) for Trimming Saw
  • With 2HP (3Ph) for Bottom Scoring Saw
  • With 1/2HP (3Ph) for Feeding Conveyor

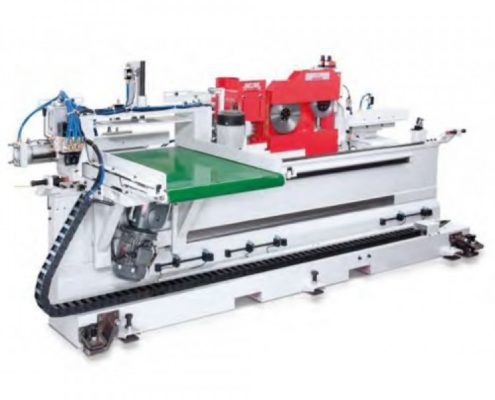

F-C08 Auto Finger Shaper – Right

Table Size 600mm (23.6”)
Length 150~900mm (5.9” ~ 35.4”)
Width 20~60mm (0.78” ~ 2.36”)
Thickness 20~160mm (0.78” ~ 6.3”)

Specifications:

  • With 20HP (3Ph) for Main Spindle
  • With 5HP (3Ph) for Trimming Saw
  • With Top and Bottom Scoring Saw, 2HP (3Ph) x 2
  • With 1/2HP (3Ph) for Feeding Conveyor
  • With Gluing System – Roller Type

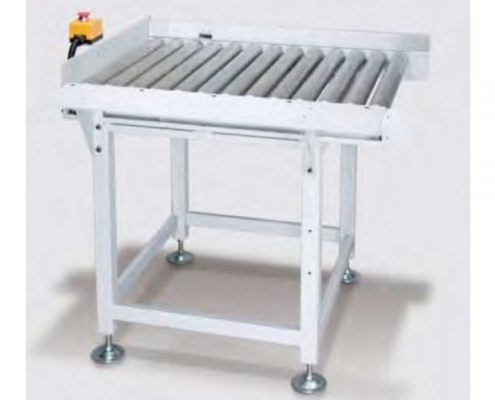

F-D16 Transfer Roller

Length 900mm (35.4”)
Width 600mm (23.6”)

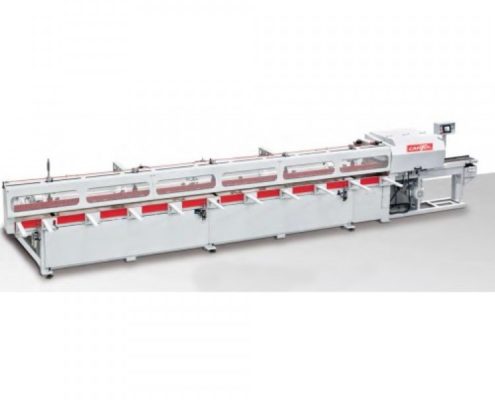

F-A05-6 Two Stage Auto Finger Assembler

Length 6000mm (236”)
Width 20~160mm (0.78” ~ 6.3”)
Thickness 20~60mm (0.78” ~ 2.36”)

Specifications:

  • With 2HP (3Ph) for Feeding Table
  • With 5HP (3Ph) for Sizing Saw
  • With 5HP (3Ph) for Oil Pump
  • With Saw Blade
  • Speed – Max. 4~5 Piece/Min.
