BI-MATIC

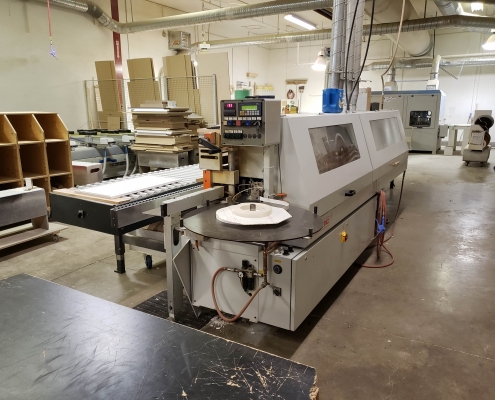

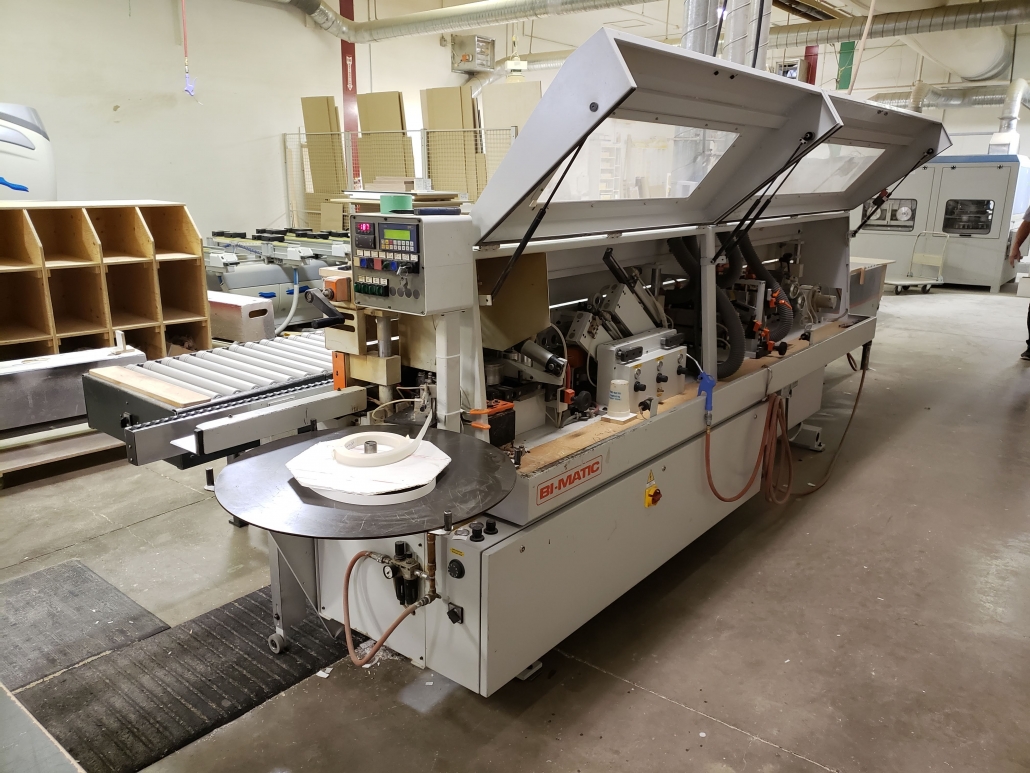

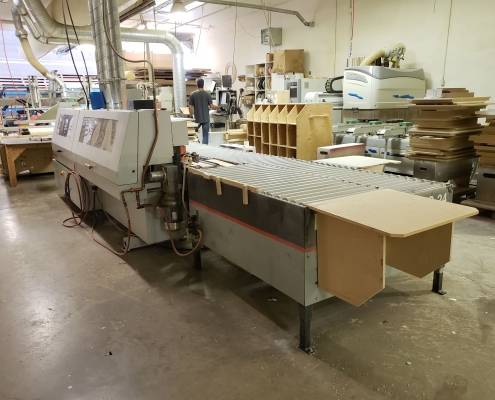

Used Compact 5.12+L Edgebander

Machine Information

Features

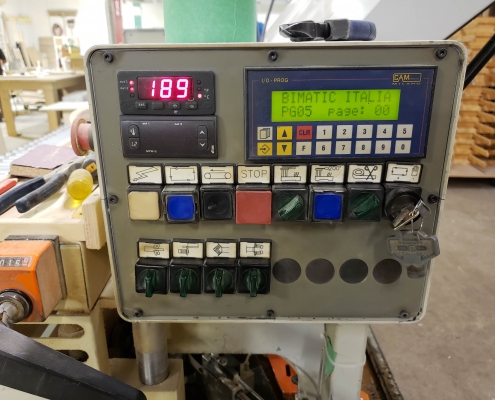

  • Line Control System
  • Heated Infeed Fence
  • Automatic Strip Feed Magazine
  • 3mm PVC Guillotine

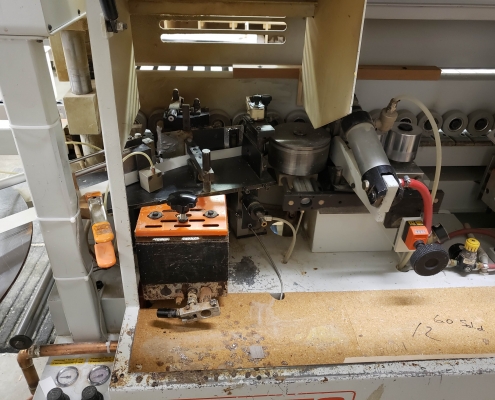

Glue Pot

  • 3 litre Teflon coated glue pot with fast heat up time

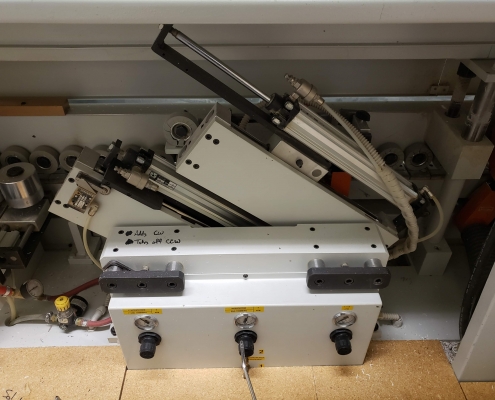

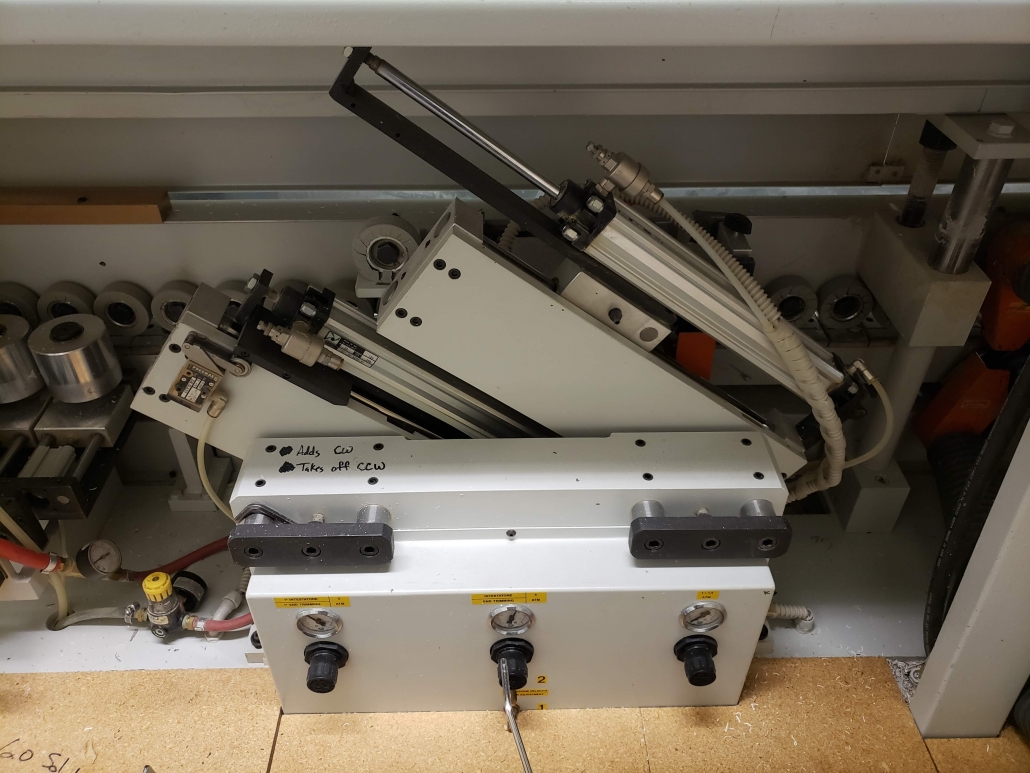

End Trim

  • Dual motor end trim for straight or chamfer cut (0 – 15°)
  • (2) 0.5 HP high frequency motors, 12000 RPM

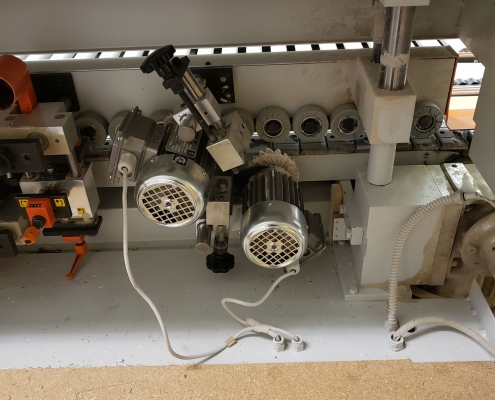

Rough Trimming

  • Top & bottom rough trimming motors (non-tilting)
  • (2) 0.75 HP high frequency motors, 12000 RPM

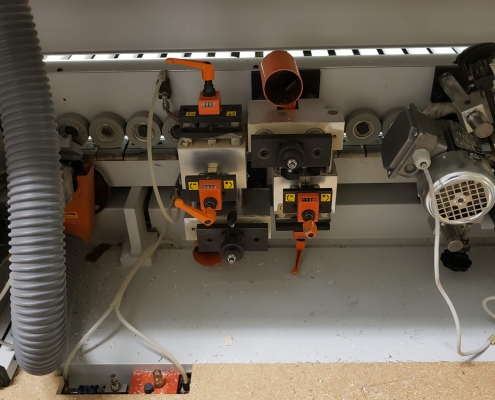

Fine Trimming

  • Top & bottom fine trimming motors, tilting from 0 – 25°
  • 3mm radius trimming cutters with straight portion for all edge requirements
  • (2) 0.75 HP high frequency motors, 12000 RPM

PVC Scraping Unit

  • Top & bottom adjustable buffing units
  • 08 HP, 3000 RPM
Specifications
Panel thickness 8~60mm
Thickness of coil edge 0.4~3mm
Thickness of strip edges 0.4~12mm
Minimum panel length for coil edges 70mm
Minimum panel length for strip edges 120mm
Minimum panel width for coil edges 50 mm
Minimum panel width for strip edges 90 mm
Glue pot capacity 3 litres
Working speed 10 & 15 m/min

Machine dimensions

Length 4430mm
Width 850mm
Height 1400mm
Machine weight 1160 kgs

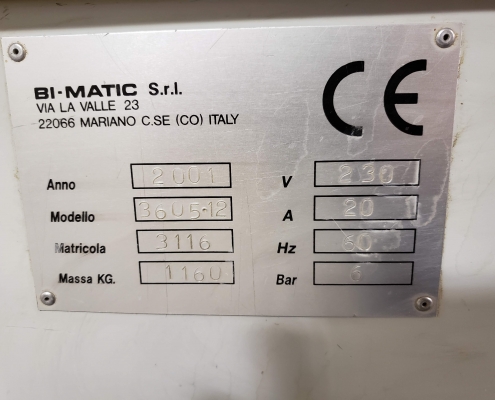

Machine Details

Year: 2001
Serial No.: 3116
Condition: Fair
Electrics: 230/3/60
Listing No.: EB BIMCOM5.12+L-2-049227
