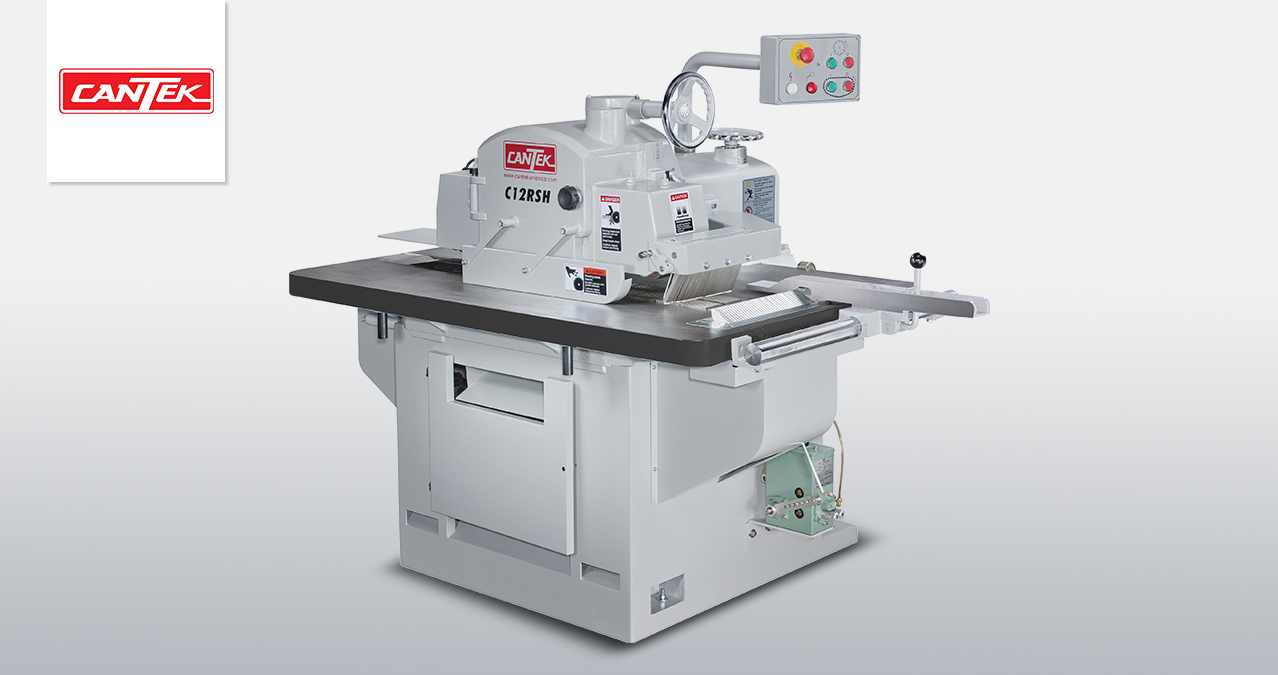

CANTEK | C12RSH Straight Line Ripsaw

Save time and speed up production in your glue-up and ripping operations.

The Cantek C12RSH Straight Line Ripsaw is a single-blade ripsaw geared towards the shop looking to increase efficiency in their ripping operations but can not justify a multi-blade ripsaw. With its precision cast iron chain and track assembly, and extended pressure section, the C12RSH can produce a glue joint finish ready for panel glue-up right out of the saw.

Why Cantek C12RSH Straight Line Ripsaw?

  • Produces a guaranteed glue joint finish to 10′, which eliminates the need to joint the material after ripping
  • Precision straight line feeding for parallel and accurate rip cuts
  • Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut.
  • Maintenance-free chain track with the use of a reliable mechanical lubrication system.

  • Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
  • Rigid machine body consists of a thick welded steel frame.
  • FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life.
  • Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
  • Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.
  • Mechanical operation Chain Oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
  • When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.
  • Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.
  • 3 sets of anti-kickback fingers. 2 top and 1 set in the table for added operator safety.
  • Soft start – Star Delta starter reduces the amp draw on startup.
  • Optional laser light to project the cutting line to achieve maximum material yield.
