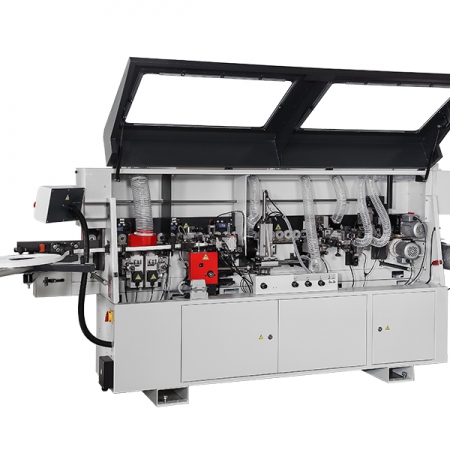

CANTEK | MX350 AUTOMATIC EDGEBANDER

High quality edge banding results for cabinet parts and case goods.

The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more.  The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint.  It comes equipped with high frequency motors on both the end trim and top & bottom trim.  In addition it is equipped with PVC radius scraping and buffing units.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.

Why Cantek MX350 Automatic Edgebander?

  • Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
  • Quick change glue pot allows you to change glue colours in minutes.
  • Couter rotating diamond premilling cutters produce optimum panel edge for superior edgebanding results
  • High frequency end trim & flush trim motors produce fine edge finishing results
  • Multi-function trimmers allows for flush or radius trimming on edge banding
  • Radius scraping removes any knife marks on radius edges
  • Buffing unit polishes the edge
  • Powerful chain feed system ensure work piece stability during application and processing of edge banding resulting in a high quality finish
  • Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
  • Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
  • Conveyor chain feed system for reliable results
  • Heated infeed fence for pre-heating the panel for optimum glue penetration
  • PLC control system with LED display and keypad
  • Workpiece is fed by chain
  • Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS
  • Spring-loaded pressure unit with (2) pressure rollers
  • Heavy-duty pressure beam with extendable workpiece support
