Used Airbor 750-4 Multiple Spindle Horizontal Boring Machine

Machine Information


Made of rugged steel construction and built around a table with 2 ½” of vertical adjustment, the Airbor 750 is a sturdy, yet budget priced multiple spindle horizontal boring machine. Spindles are mounted on a dovetail beam and drilling is controlled by an air oil system. Feed speed and boring depth are adjustable, up to a 6” stroke.

Capacity, per drive group capable of boring 2 holes, 1 ¼” in diameter per 1 HP motor
Capacity, approximate overall up to 9 holes ¾” in diameter into softwood
Up to 6 holes ¾” in diameter into hard wood
Boring area 2 ½” wide x 34” long
Table (steel) 8” wide x 48” long with 2 ½” vertical adjustment
Operation Single stroke, up to 6” (adjustable), air/oil, variable feed speed
Air pressure requirement 80 psi (min)
Spindle beam dovetail beam 37” long
Spindles 4 x 1 ½” diameter spindles
Speed 2300 RPM
Timing belt driven

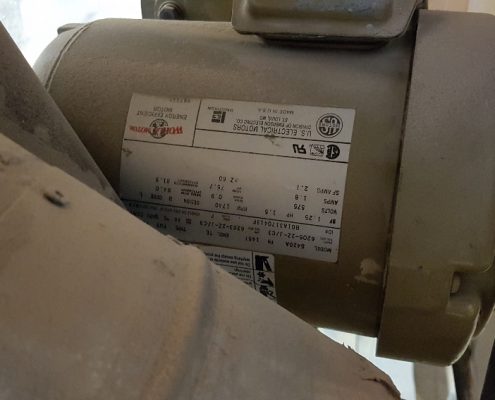

Motors 2 drive groups each with 1.5HP motors
Hold downs 2 air operated hold downs 3” in diameter with adjustable pressure
Guard clear plastic guard
Machine Details

Condition: Fair +

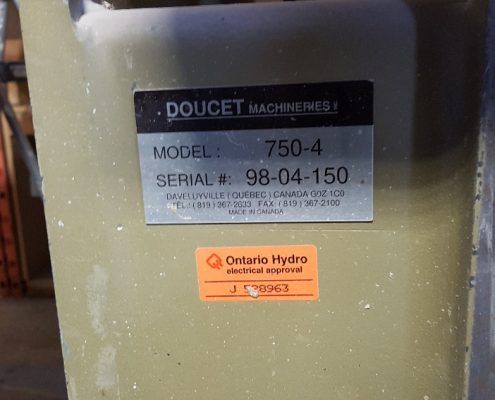

Serial #: 98-04-150
Year Mfg: 1998
Electrics: 575/60/3
Listing #: BH DOUA750-4-C3-022420
