TDS TECHNOLOGIES

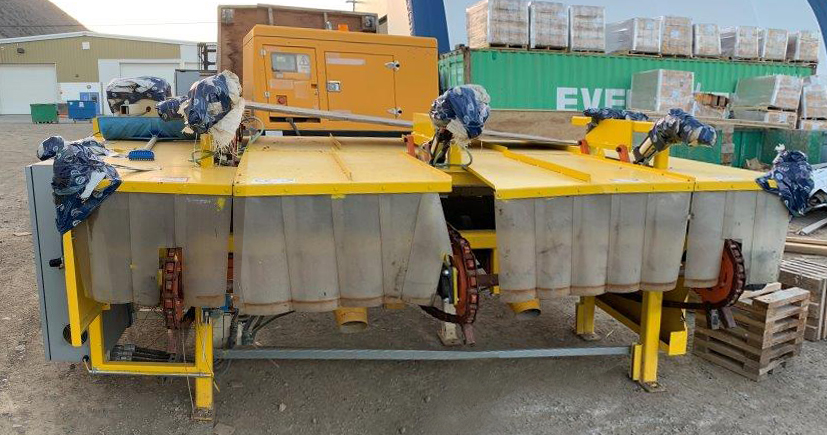

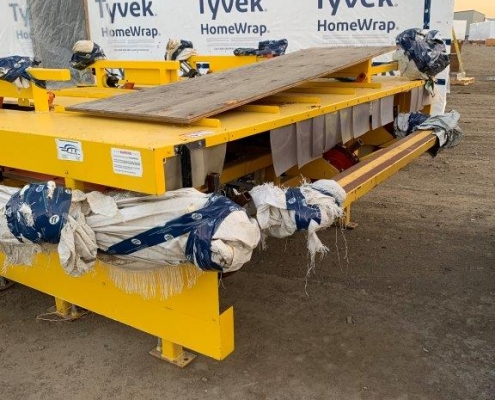

Used Notching / Trimming Machine
Images
Machine Information
Specifications
| Board material Lumber | 2×4 and 2×6. 8’ to 10’ long |
| Board Final Length | 91” and up |
| Notch width | 3.75” |
| Notch depth | Up to 1” |
| Notcher diameter | 11” |
| Notching heads | 2 |
| Notcher motor | 215T frame, 10hp, 3600rpm, 208V/60Hz/3Ph (fixed speed) |

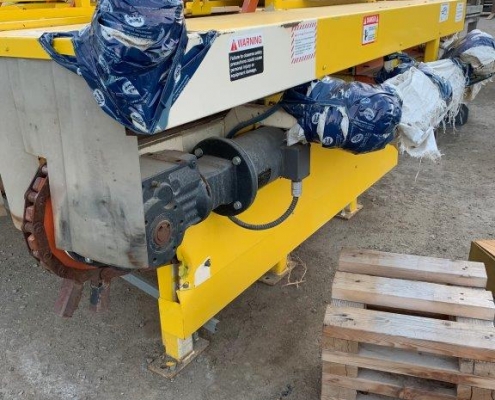

| Chain motor | 182TC frame, 3hp, 1800rpm, 208V/60Hz/3Ph (variable speed) |
| Chain speed | 0 to 123fpm |
| Saw diameter | 22” |
| Saw motor | 7.5hp arbor shaft, 3600rpm, 208V/60Hz/3Ph (fixed speed) |
| Hold down mechanism | Manual set, pneumatic spring action |
| Power requirements | 208V/60Hz/3Ph, 75A (breaker size) |
| Air requirements | 50psi, <1scfm |
Machine History
